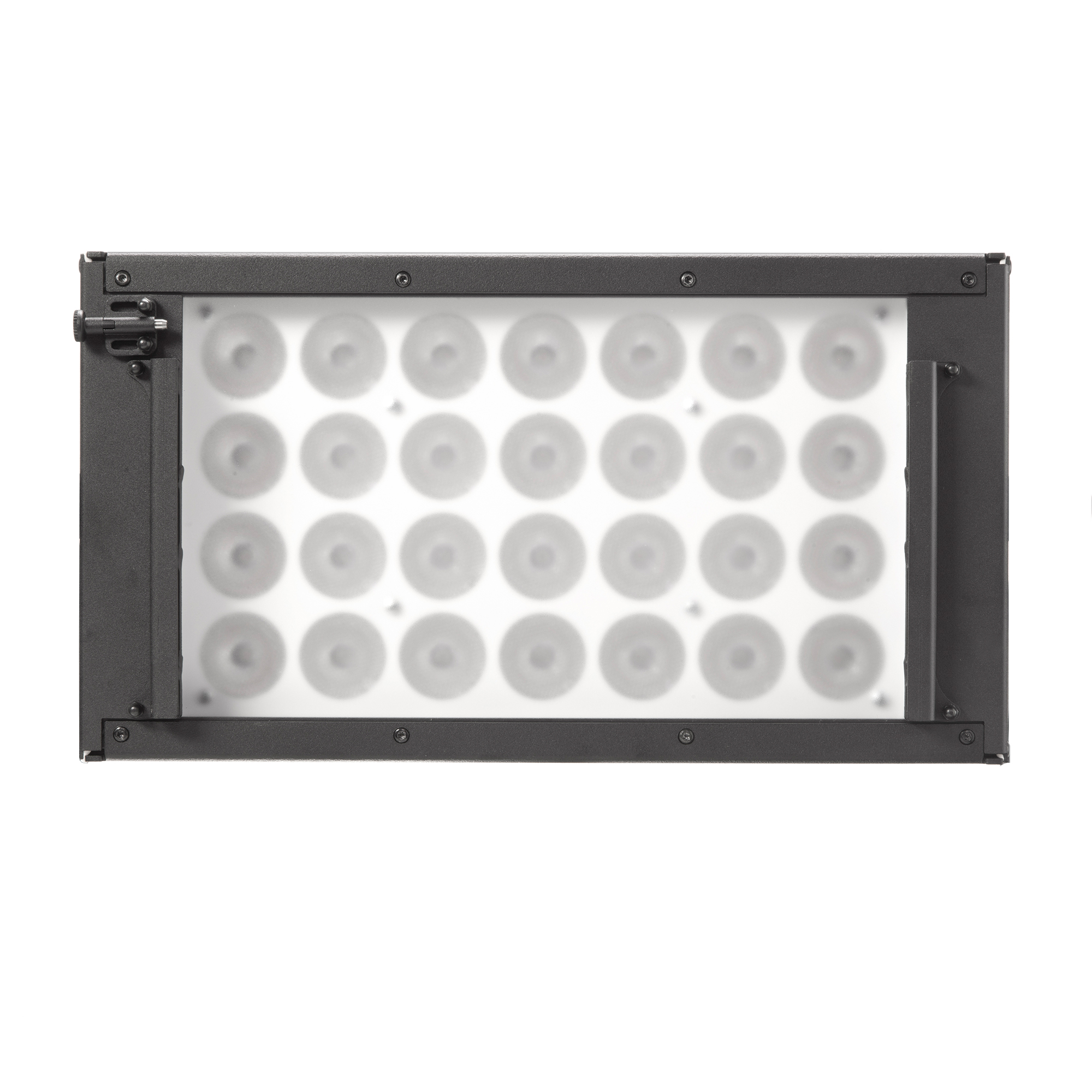

VELVET Mini 1 Power DMX IP54 LED Panel (without yoke)
PORTABLE HALF 1×1 LED PANEL PRODUCING CONCENTRATED LIGHT
35º LIGHT BEAM
VELVET MINI 1 Power DMX weatherproof panel delivers a concentrated light beam 4 times brighter than the standard soft MINI 1 and it has been designed to instantly setup and adjust.
MINI Power 1 offers the same robust, silent, powerful and easy to use VELVET quality light under a small, portable housing for videographers.
QUICK SET UP
Dedicated 3200K/5600K quick-shift button.
High-visibility digital display and shock-resistant buttons.
VELVET QUALITY LIGHT
VELVET MINI 1 produce a powerful while natural light to get perfect skin tones and real colors, the VELVET touch!
SMART AC & DC POWERED
VELVET Mini 1 Power is always ready to operate worldwide:
with any Vlock or Gold battery mount

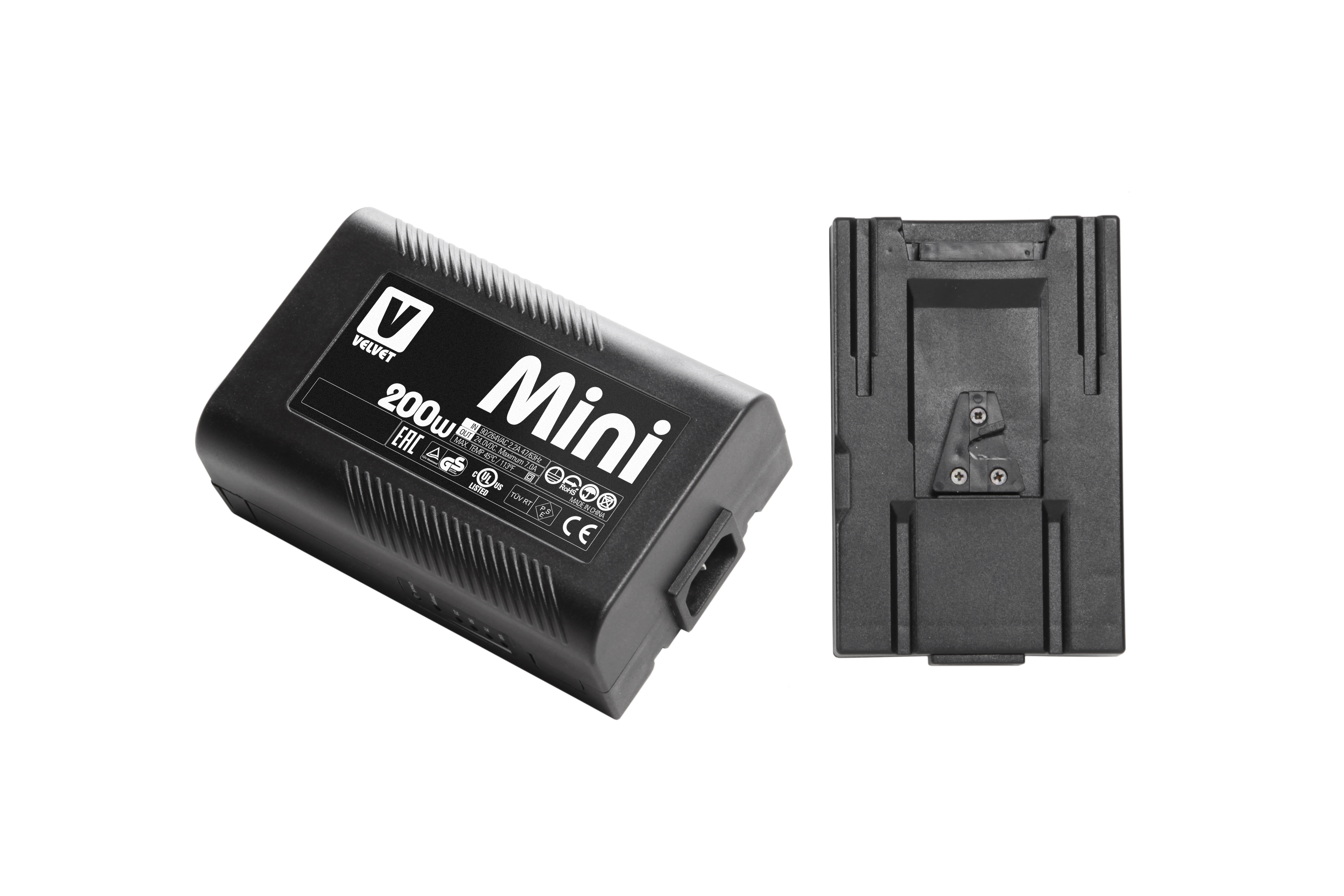

with its Smart Vlock AC Adapter 90-264 VAC
ADVANTAGES
- Weatherproof impact-resistant aluminum body
- Long throw concentrated 35º light beam
- Dedicated 3200K/5600K quick-shift button
- 2700K to 6500K in precise 100K digital steps
- 600 Lux at 3m / 55 fc at 10 feet
- Two years warranty. 100% made in Barcelona, Spain
- Affordable European
quality
VELVET BEAUTY LIGHT
VELVET Mini 1 Power is a workhorse light to travel and easily get natural and stylish images
PROFESSIONAL CONTROL

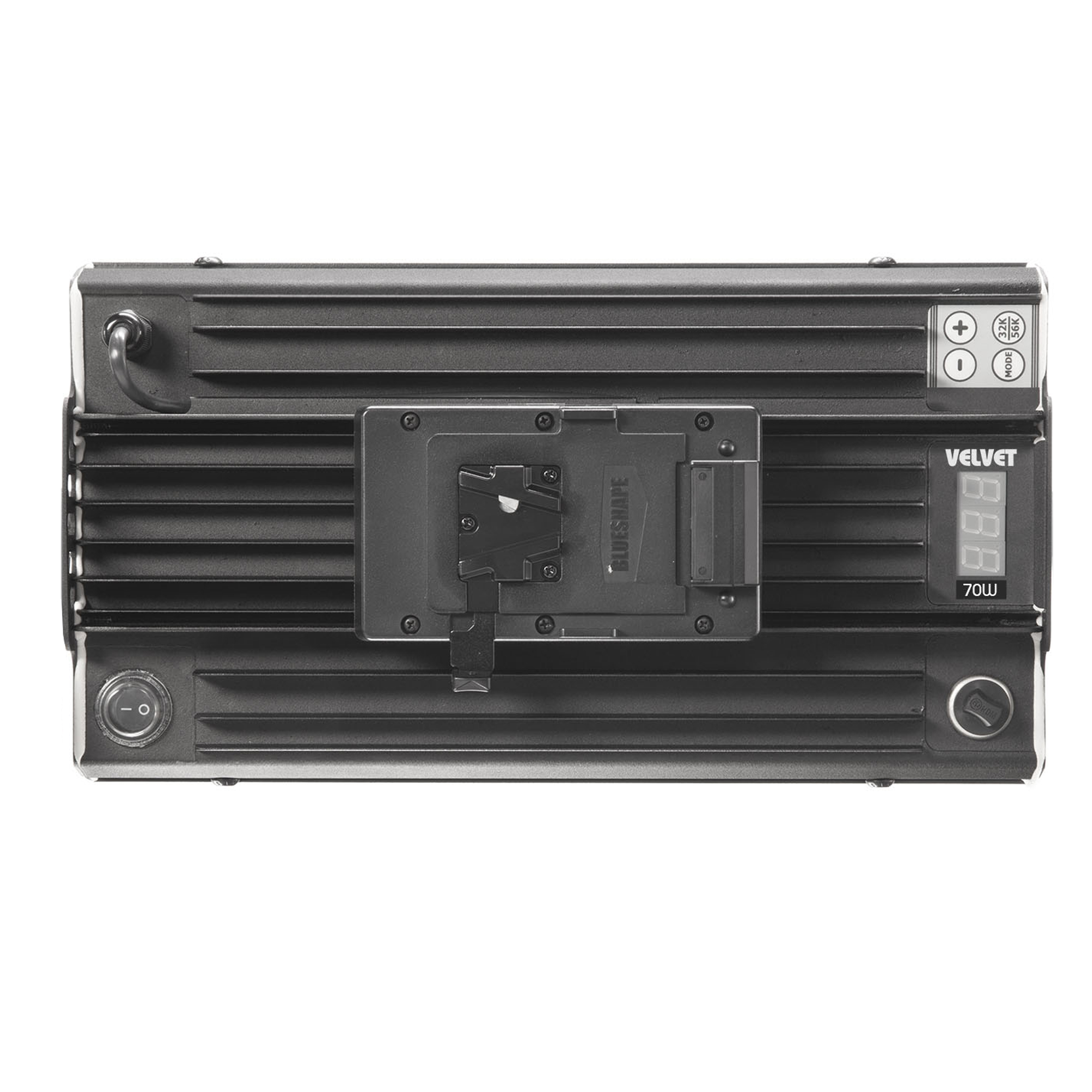

The color temperature and light intensity levels are digitally displayed and can be precisely adjusted through shock resistant buttons.
LIGHTING HAS NEVER BEEN SO EASY
The beam is so powerful to be used on day outdoors or to get a wealthy light level in studio through its long throw.
Getting so much light output projected at long distances from a thin, robust half 1×1 LED panel opens a new world of possibilities and simplifies light design.
VELVET MINI 1 Power can be combined with strong daylight light sources or used as exterior fill light.
In studio or location its efficiency is perfect to light big areas or to be used as strong key or backlight.
As any VELVET fixture can be combined with any kind of light source and its built-in and DMX digital controls lets you adapt on the fly to the changing light conditions or desired light effect.
ADVANCED DMX-RDM
Master-slave function. Starting with one fixture, link several fixtures through DMX and operate them all in unison without a console!
Bi-directional DMX RDM. All VELVET MINI Power lights are RDM enabled for a fast channel addressing and channel assignment workflow.
MADE TO LAST
Rugged 100% aluminum body. Dust and weatherproof IP54, made to endure the toughest working conditions on any location or in any studio.
|
COLOUR TEMPERATURE |
adjustable from 2700K to 6500K in 100K steps |
|
LIGHT INTENSITY |
dimmable 0 to 100, smooth and flicker-free |
|
TLCI INDEX |
96 typical |
|
DIMENSIONS |
345 x 190 x
90 mm (panel) 13.6″x7.5″x3.5” |
|
WEIGHT |
2 kgs / 4.4
lbs (panel) |
|
POWER DRAW |
70 W |
|
POWER SUPPLY |
12 – 35 VDC
through Vock or Gold battery mount plate |
|
BEAM ANGLE |
35º |
|
PHOTOMETRICS |
5000 lux /
463 fc at 1m / 3 feet |
|
LED RATED LIFE |
more than 50.000 hours L70 |
|
POWER CONNECTION |
Vock or Gold battery mount plate |
|
DMX |
DMX-RDM with XLR-5 in connector |
|
OUTPUT FREQUENCY |
flicker free up to 2000 fps |
|
OPERATION TEMPERATURE |
from -20ºC to +40ºC |
|
COOLING |
no-noise, fan-free passive cooling |
|
PROTECTION |
IP54 weatherproof, indoor or outdoor use |
|
VELVET LED TECHNOLOGY |
selected BIN high-power LED + custom optics + optic diffuser + CPU software control |
|
RIGGING OPTIONS |

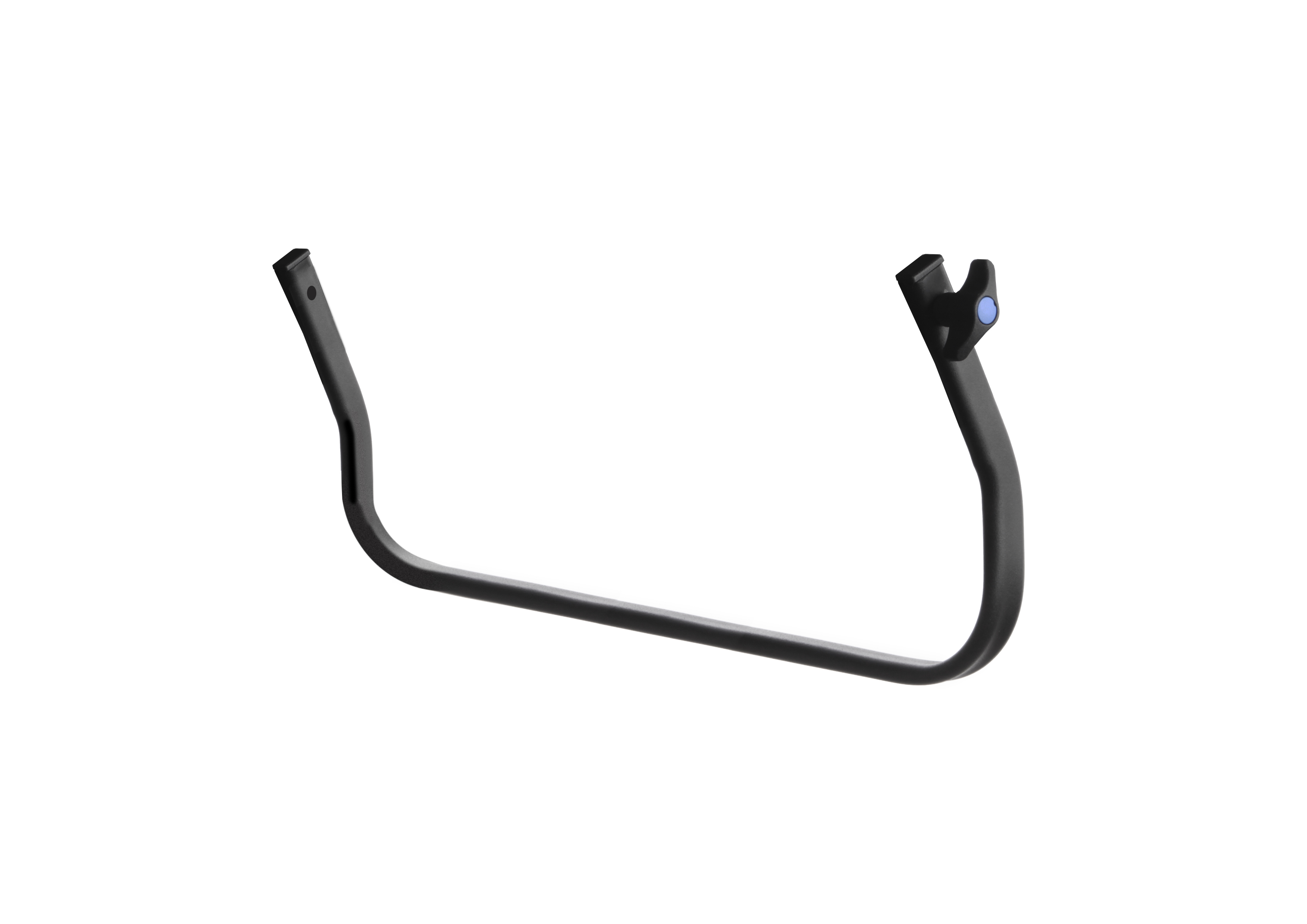

aluminum yoke with 16 baby receiver combined with 28 junior pin, multiple ¼-20”rigging points, multipanels yokes, pole-operated studio yoke |
|
QUICK MOUNTING ACCESSORIES |

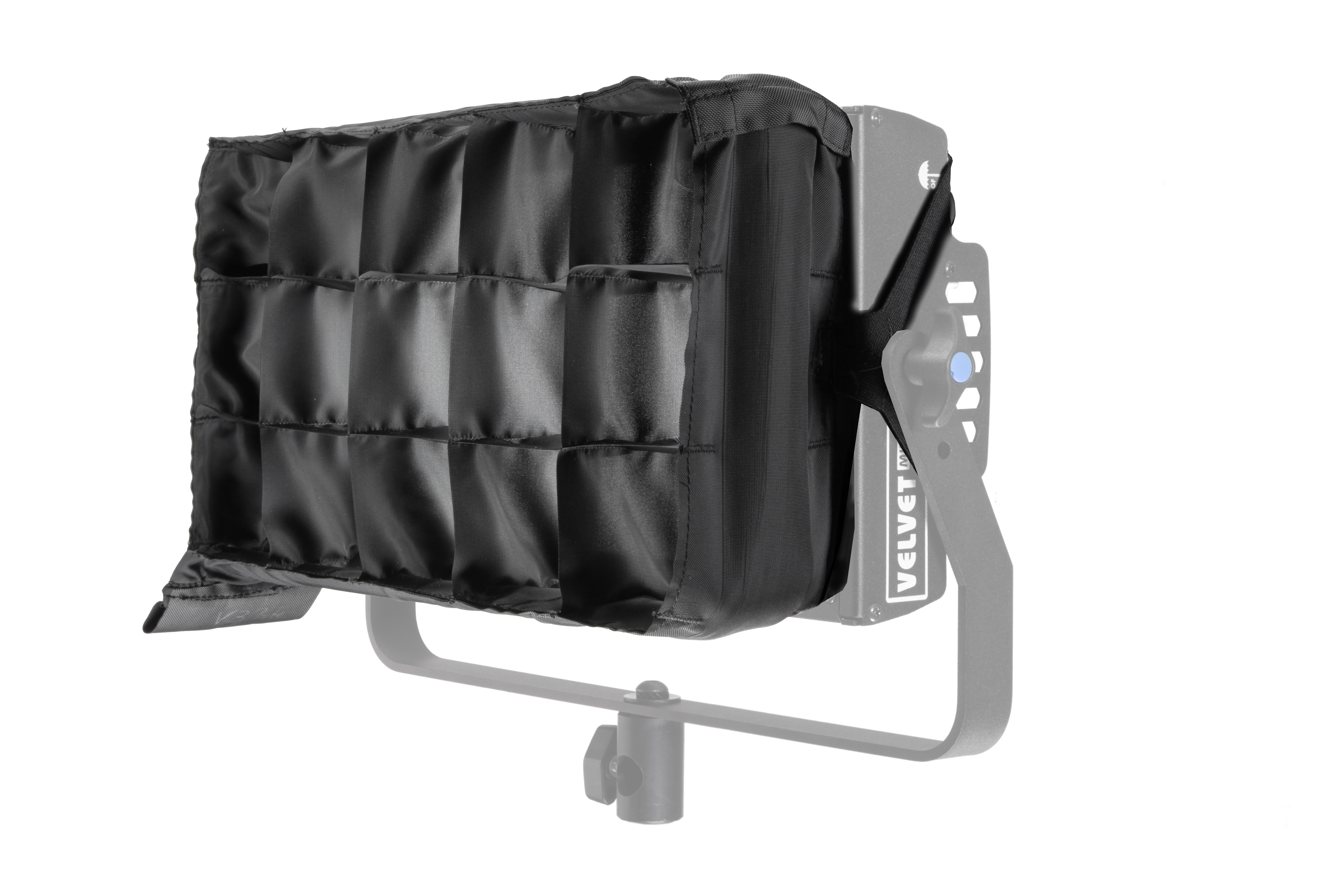

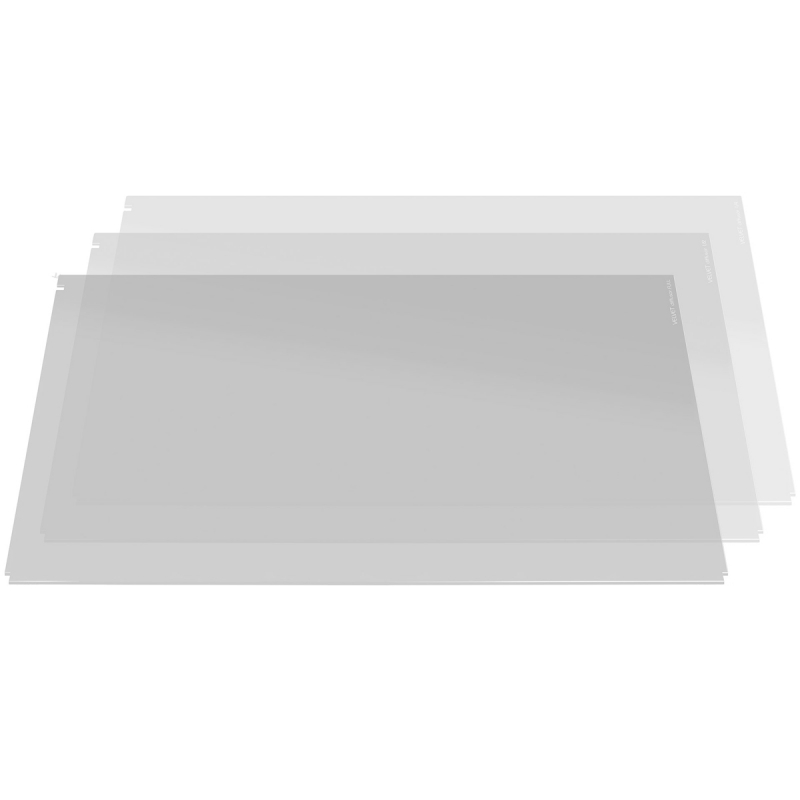

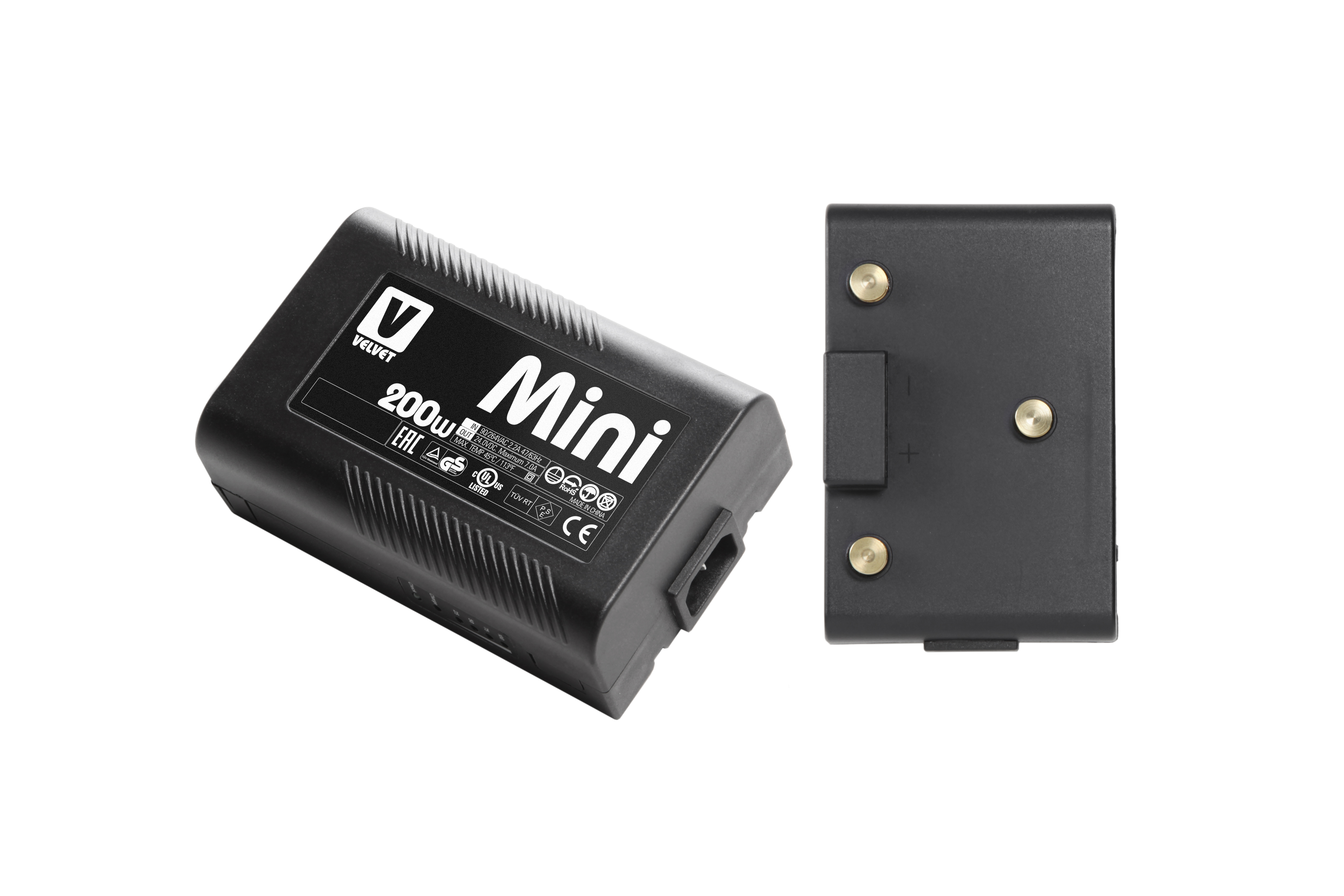

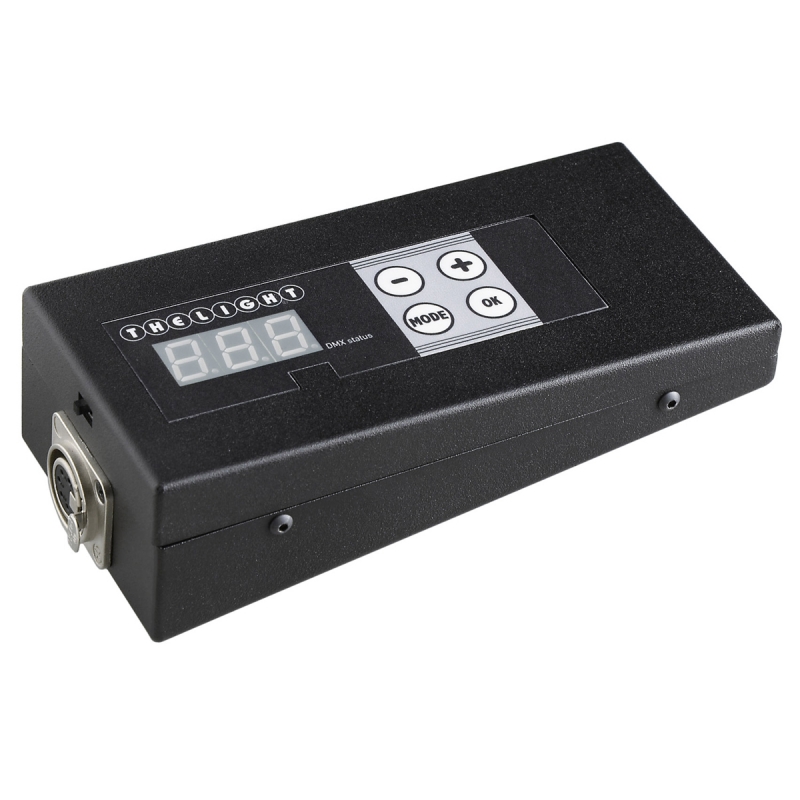

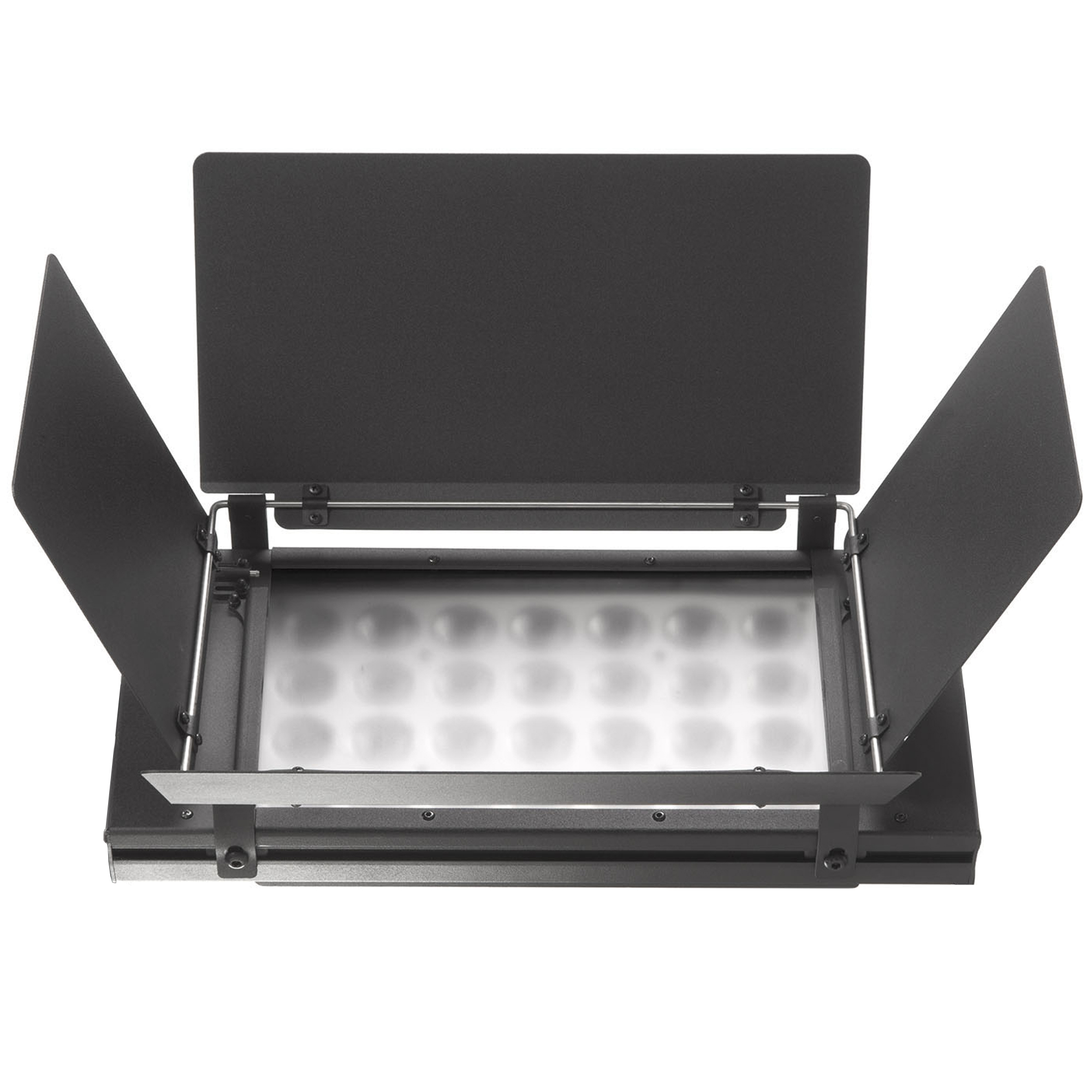

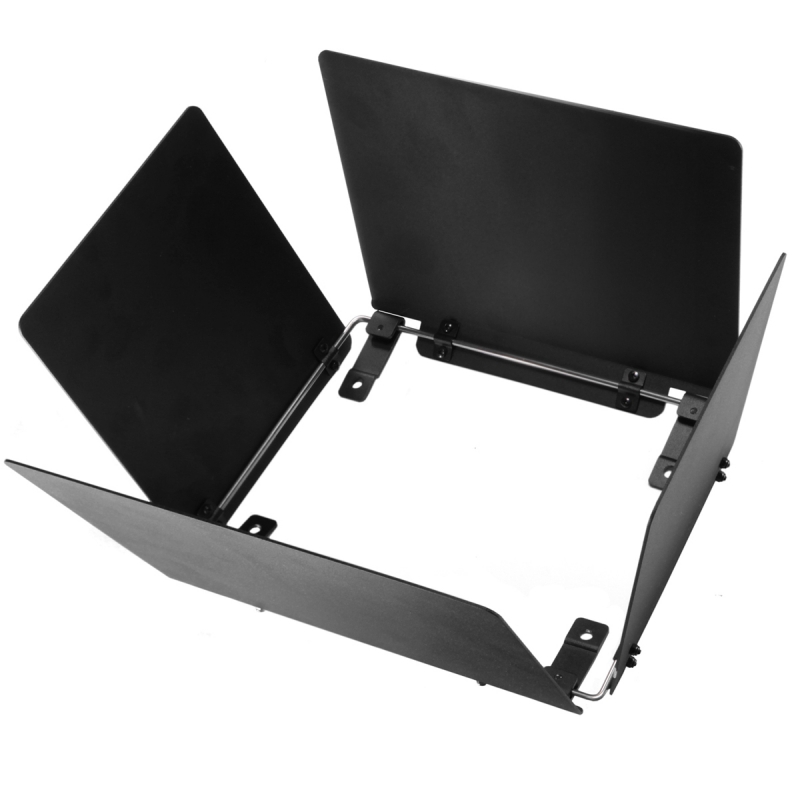

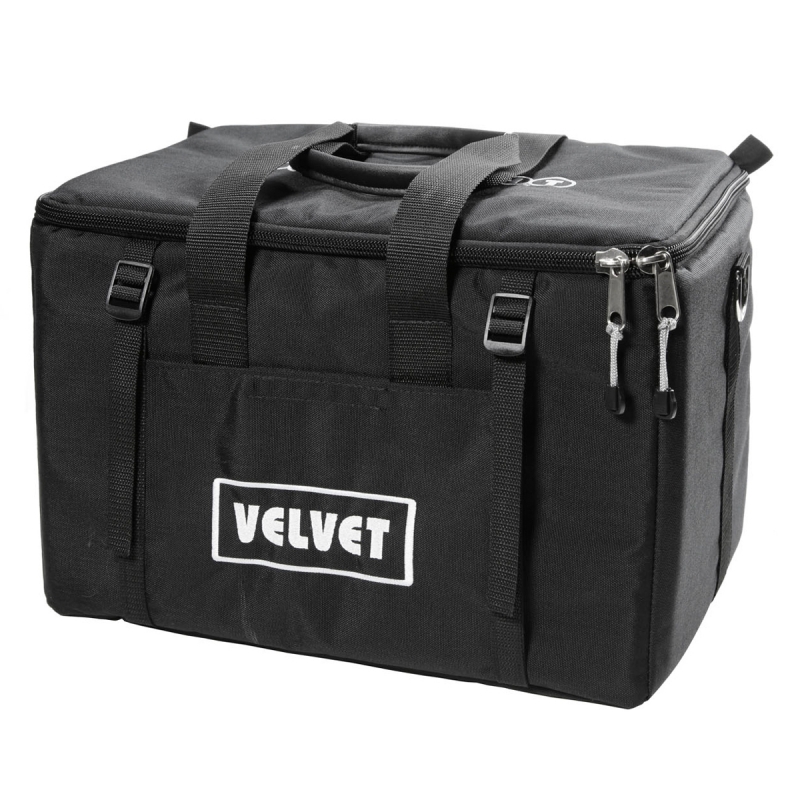

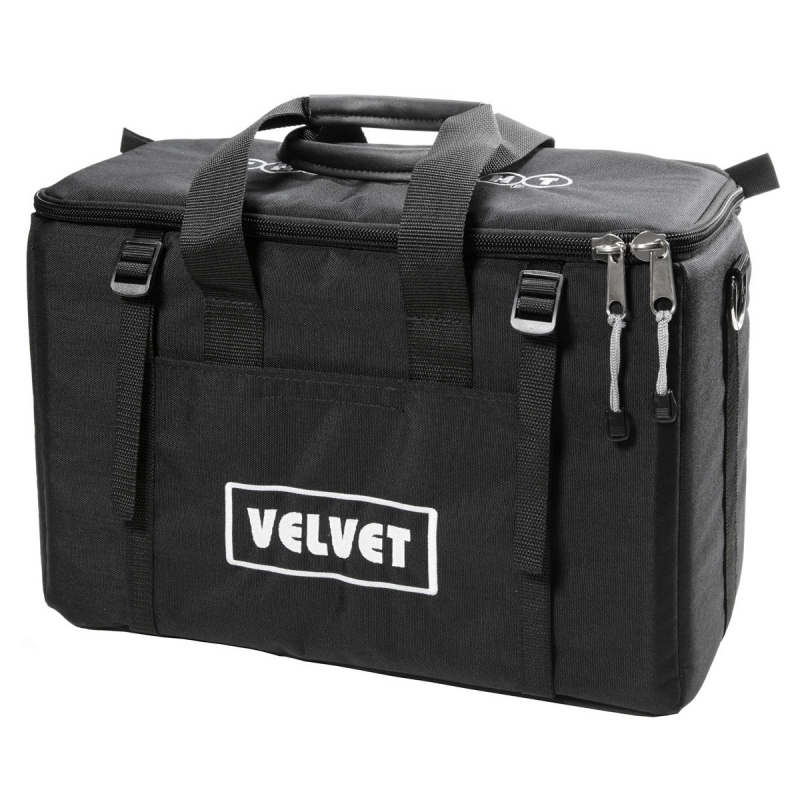

Smart Vlock AC power supply, quarter, half and full hard diffusion, foldable Snapgrid, removable barn doors, remote control, cordura case, hard case |
|
CONSTRUCTION & FINISH |
Made of black powdercoated extruded and sheet aluminum |
Specifications subject to change without notice.
| Battery System: | Gold Mount, V-Mount |
|---|---|
| Beam Angle: | 35° |
| Colour temperature: | 2700K - 6500K |
| Dimming: | 0 - 100% |
| Housing Color: | black |
| Light Engine: | LED |
| Material: | Aluminium |
| Power Consumption: | 70 W |
| Protection Class / IP Rating: | IP 54 |
| Variante: | with DMX |
| Voltage Range: | 12 - 35V DC, 90 - 264 V ~ |
